The Ultimate Guide to Hydraulic Breaker Cells: Power, Efficiency, and Innovation
In the demanding world of construction, demolition, mining, and quarrying, efficiency is paramount. At the heart of many of these operations lies a critical component that transforms hydraulic energy into raw, controlled force: the hydraulic breaker cell (often referred to as the power cell or hammer mechanism). This internal powerhouse is what determines the productivity, reliability, and cost-effectiveness of your hydraulic hammer or rock breaker attachment.
This comprehensive guide delves into the technology of hydraulic breaker cells, exploring their function, key advancements, and what to look for when choosing equipment for your next project.
What is a Hydraulic Breaker Cell?

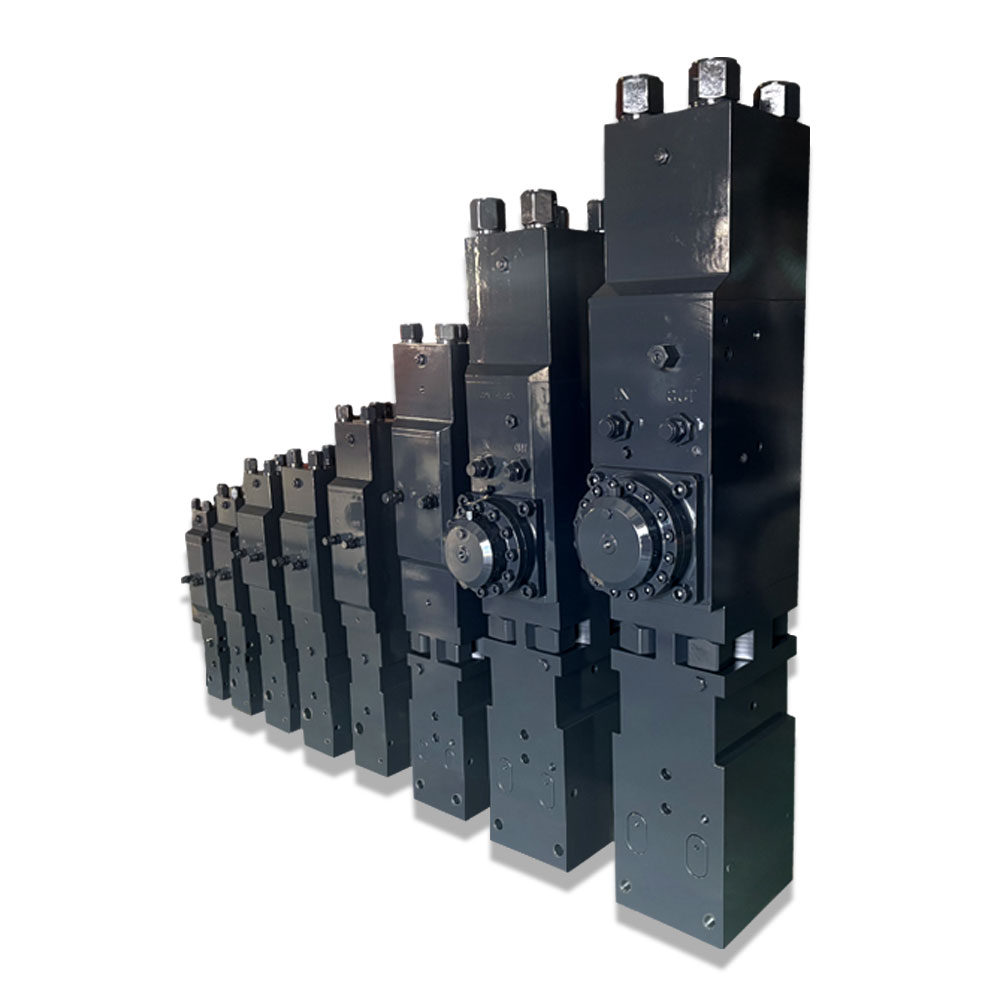

The hydraulic breaker cell is the core impact mechanism inside a hydraulic breaker. It’s a self-contained system that uses high-pressure hydraulic fluid from the carrier machine (excavator, skid steer, backhoe loader) to generate a rapid, powerful hammering action.
Think of it as the "engine" of the breaker. While the external housing, tool (chisel/moit), and mounting bracket handle the structural load and connection, the cell is responsible for the fundamental task of creating impact energy. Its design directly influences:
Impact Energy (ft-lbs or joules): The sheer force of each blow.
Blows Per Minute (BPM): The frequency of strikes.
Fuel Efficiency: How effectively it converts hydraulic flow into productive work.
Durability & Service Life: Its resistance to wear, fatigue, and failure under constant stress.
Core Components and How It Works
A modern hydraulic breaker cell is an engineering marvel of precision. Its main components work in a continuous cycle:
Piston: The primary moving part, a high-strength steel cylinder that accelerates to strike the tool.
Cylinder: The chamber in which the piston travels.
Valve System (Control Valve): The "brain" that directs hydraulic fluid flow to alternate sides of the piston, controlling the reciprocating strike cycle.
Accumulator: A crucial component that stores hydraulic energy as a gas charge (usually nitrogen). It cushions shocks, improves energy recovery for the next stroke, and protects the carrier’s hydraulic system from damaging pressure spikes.
Front Head & Tool Bush: The interface that guides the tool and absorbs sideways stresses.
The Work Cycle: High-pressure oil pushes the piston upward, compressing the gas in the accumulator. At the top of its stroke, the valve system instantly switches, releasing the oil pressure. The combined force of the hydraulic pressure and the expanding nitrogen gas then accelerates the piston downward at tremendous speed to impact the tool, which transmits the energy to the work material (rock, concrete, etc.).
Technological Advancements in Breaker Cell Design
Leading manufacturers are constantly innovating to deliver more power with less waste. Key advancements include:
Auto-Energy/Auto-Stroke Control: Intelligent systems that automatically adjust the piston stroke length and impact energy based on the hardness of the material. This prevents "blank firing" (hammering in air), reduces unnecessary wear, and saves fuel.
Variable Frequency Technology: Allows the operator or system to tailor the blows-per-minute for optimal efficiency in different applications, from high-speed breaking of asphalt to high-energy breaking of thick concrete.
Advanced Cushioning & Damping: Improved internal designs and materials that significantly reduce vibration and shock transmitted back to the carrier machine's boom and arm, enhancing operator comfort and machine longevity.
High-Strength, Fatigue-Resistant Materials: The use of specially forged and heat-treated steels for the piston and cylinder to withstand millions of high-impact cycles.
Why the Breaker Cell Matters: Benefits of a Superior Design
Choosing equipment with a well-engineered hydraulic breaker cell delivers tangible benefits on the job site:
Higher Productivity: More efficient energy transfer means faster completion of breaking tasks.
Lower Total Operating Cost: Reduced fuel consumption, less wear on the carrier's hydraulic system, and longer intervals between service.
Versatility: A responsive, adaptable cell can handle a wider range of materials effectively, from frozen ground to reinforced concrete.
Choosing the Right Hydraulic Breaker and Cell for Your Project
Selecting the correct breaker is a balance between the carrier machine and the task. The breaker cell's requirements are central to this calculation:
Match to Your Carrier: The breaker's required oil flow (GPM/LPM) and operating pressure (PSI/Bar) must be within your excavator or skid steer's capabilities. An oversized breaker with a hungry cell will underperform, while an undersized one will be inefficient.
Consider the Primary Application: Are you doing precision urban demolition (requiring lower impact, higher control) or heavy-duty rock breaking in a quarry (requiring maximum impact energy)?
Prioritize Serviceability: Look for a design that allows for easier maintenance of the cell components. Sealed, cartridge-style valves and accessible wear parts can slash maintenance time.
[Insert Your Brand/Company Here - Example based on general industry knowledge]
Companies like Rocka Machinery understand that the breaker cell is the cornerstone of performance. By focusing on independent research and development and strict quality control in the manufacturing of these core components, they ensure their ROCKAGE hydraulic breakers deliver the power and durability professionals depend on. The advantage of partnering with a specialized manufacturer often lies in their ability to offer customizable solutions and a direct price advantage without compromising on the technology inside the cell.
Conclusion: The Smart Investment
While the external brand and model are important, the true value of a hydraulic breaker is determined by the quality and innovation of its internal hydraulic breaker cell. It's the difference between simply owning a tool and wielding a reliable, high-performance asset that boosts your bottom line.
Investing time in understanding this technology and choosing equipment from manufacturers who prioritize advanced cell design will pay dividends in productivity, efficiency, and job site success for years to come.
Ready to power up your operations? Evaluate your needs, consult with experts, and choose a hydraulic breaker built around a superior cell.
